Shot Blasting Sa 2.5 – Large Steel Components up to 50 t
Prepare steel structures and heavy parts up to 50 t to Sa 2.5 blast quality – shot blasting in our own 25 × 7 × 6 m large-format cabin, blasting and painting from a single source in Lorch.
Sa 2.5 blast quality
Reliable cleanliness grade for corrosion protection to EN ISO 12944.
Cabin 25 × 7 × 6 m
Large-format components and complete welded assemblies blasted in a single setup.
Heavy parts up to 50 t
2×25 t crane system and hall infrastructure for all component sizes.
Blasting and painting from one source
Direct process handover to the identical spray booth – no sub-contractors required.
No minimum order
Single parts and small batches are accepted alike.
DIN EN ISO 9001:2015
Quality management with documented surface inspection.
Shot Blasting Sa 2.5 – Process and Capacity
In shot blasting, the steel surface is mechanically cleaned and profiled by accelerated abrasive media (e.g. steel grit). Sa 2.5 (very thorough blast cleaning to ISO 8501-1) is the standard for corrosion protection to EN ISO 12944. The process reliably removes mill scale, rust, old paint and contamination.

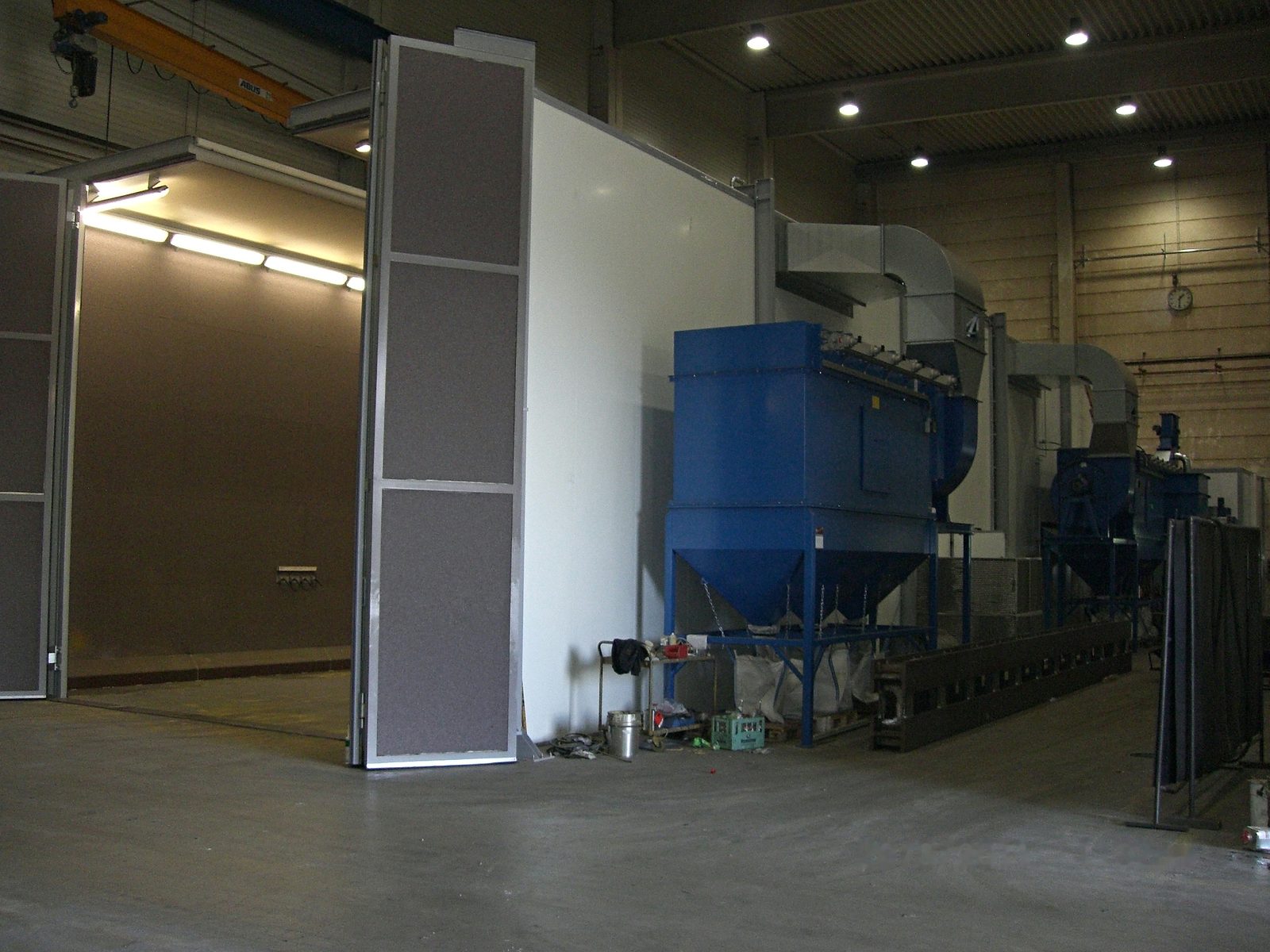

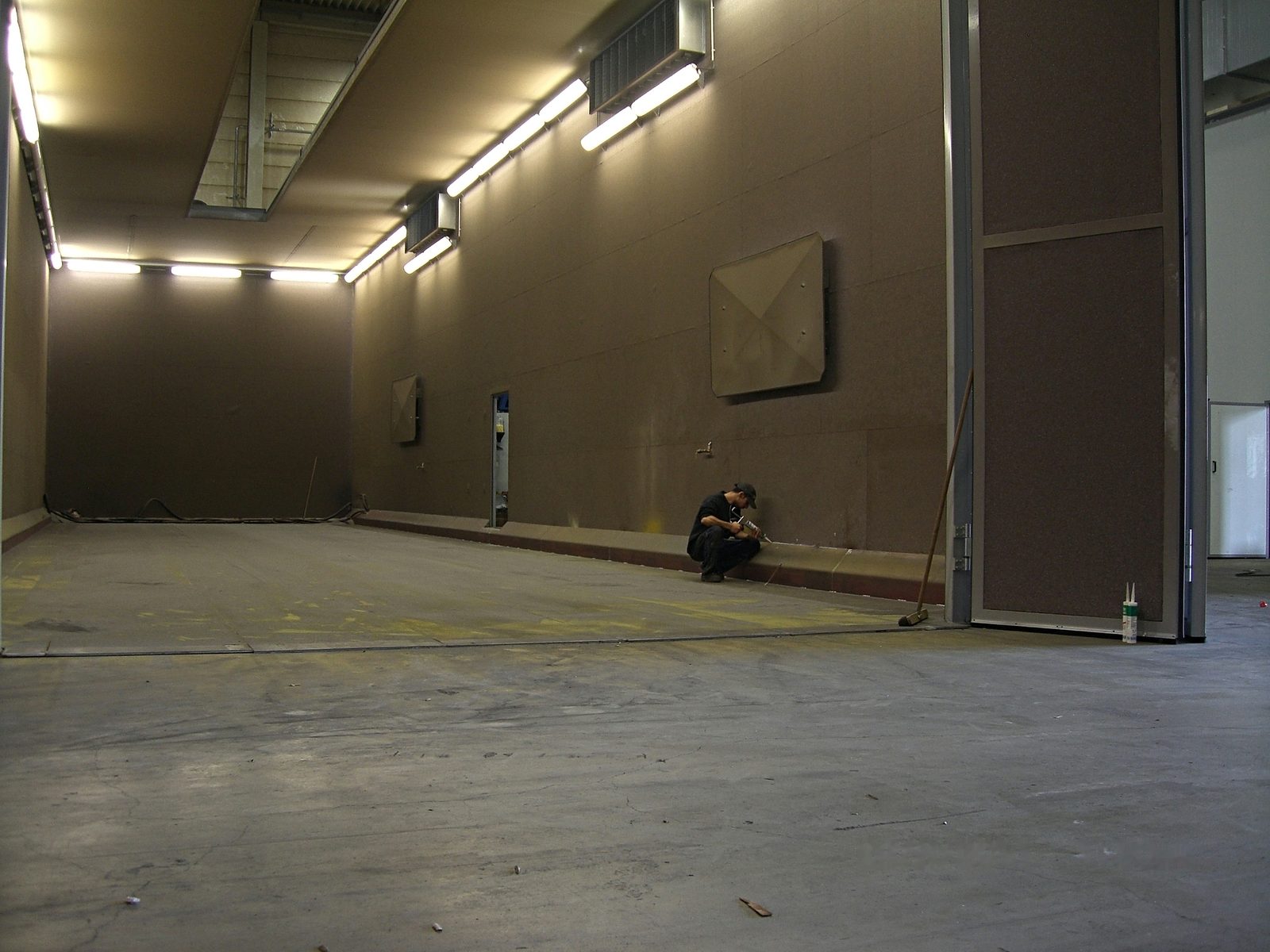

The blasting cabin at Bock measures 25 × 7 × 6 m – one of the largest in the region. Heavy components, frames, beams and welded assemblies up to 50 t can be processed in full. The 2×25 t crane system enables safe handling of all component sizes.
Shot blasting is fully integrated into the manufacturing process – blasted components proceed directly to industrial painting in the same facility.
Surface preparation to Sa 2,5 creates optimal adhesion conditions for coatings and paints. The resulting roughness profile and cleanliness meet the requirements for corrosion protection systems up to corrosivity category C5 with high durability (H) to EN ISO 12944.
For components with special requirements – for example to standards for hydraulic steel structures or pressure vessels – different blasting grades such as Sa 3 (blast-cleaning to visually clean steel) can be achieved on request. Primer coating directly after blasting is also possible.
Quality assurance is carried out in accordance with DIN EN ISO 9001:2015 with full traceability. Material certificates and surface inspection records are provided on a project-specific basis and included with the delivery.
Machine data
| Parameter | — |
|---|---|
| Cabin length | 25 m |
| Cabin width | 7 m |
| Cabin height | 6 m |
Sa 2.5 Blast Cleaning – For All Steel Fabrications
Shot blasting to Sa 2.5 is suitable for:

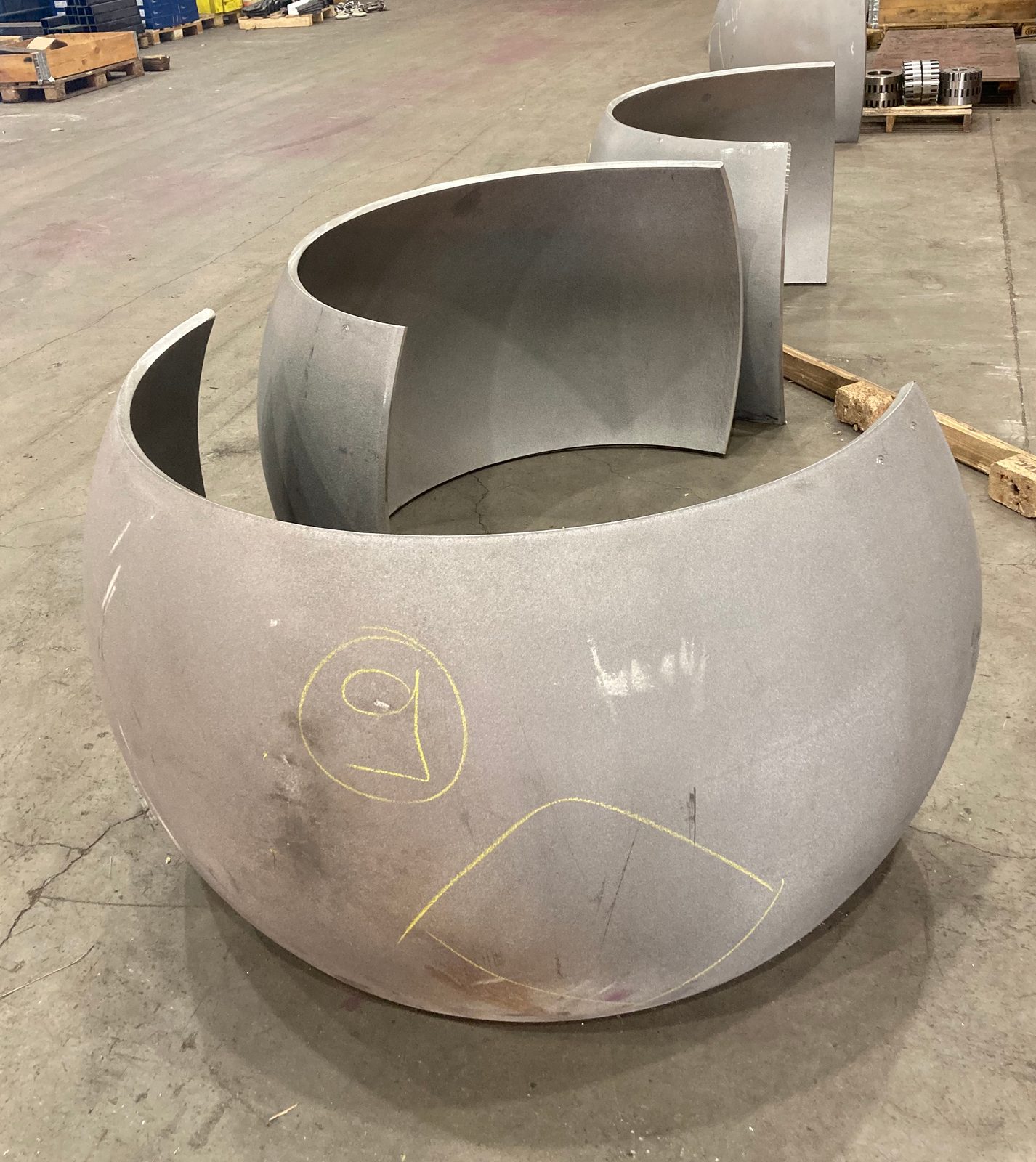

- Welded assemblies in steel, Hardox and fine-grain structural steel
- Machine components, base plates, structural beams and customer-supplied castings
- Crane and vehicle steel fabrications
- Steel tanks and pressure vessels before coating
- Large-format frame structures and structural components
Alternative blast grades (Sa 2 or Sa 3) are available on request.
Typical Applications
Shot blasting Sa 2.5 at Bock is used for:
- Corrosion protection surface preparation to EN ISO 12944
- Adhesion surface for epoxy and zinc dust primer coatings
- Refurbishment: removal of old paint and rust
- Post-weld cleaning: removal of slag and mill scale
- Coating preparation for systems up to C5, high durability (H)
Blasted components are coated immediately in our own painting facility – no sub-contractor required. The integrated blasting and painting facility allows an uninterrupted process chain without intermediate storage. For components with high corrosion protection requirements, Sa 2,5 blasting followed by priming and top coating can be combined in a single order. Quality documentation and surface records to DIN EN ISO 9001:2015 are available for all order types. Contract service also for customer-supplied components. Blasting and painting bookable as a combined process. Individual parts and small series with no minimum quantities.
Shot Blasting at Bock – Your Advantages
Bock Maschinenbau operates shot blasting as an integrated step of contract manufacturing:
- Cabin 25 × 7 × 6 m
- Large-format components and complete welded assemblies processed in a single setup.
- Sa 2.5 blast quality
- Standard for corrosion protection to EN ISO 12944 reliably achievable.
- Components up to 50 t
- Crane capacity and hall infrastructure for all component sizes.
- Blasting and painting from one source
- No sub-contractors required – process handover within the same workshop.
- DIN EN ISO 9001:2015
- Quality management system with documented surface inspection.
Machine and plant builders from the Stuttgart area, the DACH region and across Europe have us blast large assemblies here in Lorch – blasting and painting in the same plant.
Frequently asked questions about shot blasting
Are blasted components painted in the same plant?
Yes. Shot blasting is followed immediately by industrial painting in our own spray booth of the same size (25 × 7 × 6 m) – without a subcontractor and without intermediate storage. For components with high corrosion protection requirements, Sa 2.5 blasting, priming and top coating can be carried out in a single order.
What does the blast cleaning grade Sa 2.5 mean?
Sa 2.5 is a surface preparation grade to ISO 8501-1 and denotes very thorough blast cleaning: mill scale, rust, paint residues and contamination are removed. For corrosion protection coating systems to EN ISO 12944, Sa 2.5 is the usual surface preparation.
Are blast cleaning grades other than Sa 2.5 also possible?
Yes. Different blast cleaning grades such as Sa 2 or Sa 3 can be achieved on request, for example for hydraulic steel structures or pressure vessels.
Are single parts and customer-supplied components blasted?
Yes. Shot blasting is also available as a contract service for customer-supplied components; single parts and small batches are accepted without minimum quantities.
What documentation is supplied with shot blasting?
Material certificates and surface inspection records are provided on a project basis and included with the delivery. Quality assurance is carried out in accordance with DIN EN ISO 9001:2015.
Contact
Request Shot Blasting
Tell us the dimensions, weight and the required blast-cleaning grade. We blast customer-supplied parts as a standalone service or hand them over directly to the paint booth in the same plant.
